商品編號:M5090
M5090 網路分析儀-VNA

CMT M5090 Vector Network Analyzer

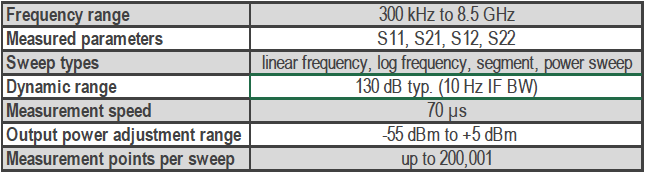

  • Frequency range: 300 kHz to 8.5 GHz
  • Measured parameters: S11, S12, S21, S22
  • Sweep types: Linear frequency, log frequency, segment, power sweep
  • Dynamic range: >130 dB (10 Hz IF bandwidth) typ.
  • Measurement speed: 70 µs, min typ.
  • Output power adjustment range: -55 dBm to +5 dBm
  • Up to 200,001 measurement points per sweep

Datasheets

M Series Data Sheet | M5090 Extended Specifications

規格
2-Port 8.5 GHz Analyzer

8.5GHz向量網路分析儀(Vector Network Analyzer), M5085

  • 頻率範圍:300 kHz 至 8.5 GHz
  • 測量參數:S11、S12、S21、S22
  • 掃描類型:線性頻率、對數頻率、分段、功率掃描
  • 動態範圍:>130 dB(10 Hz IF 帶寬)典型值。
  • 測量速度:70 µs,最小典型值。
  • 輸出功率調節範圍:-55 dBm 至 +5 dBm
  • 每次掃描最多 200,001 個測量點
