商品編號：TSBPF0102

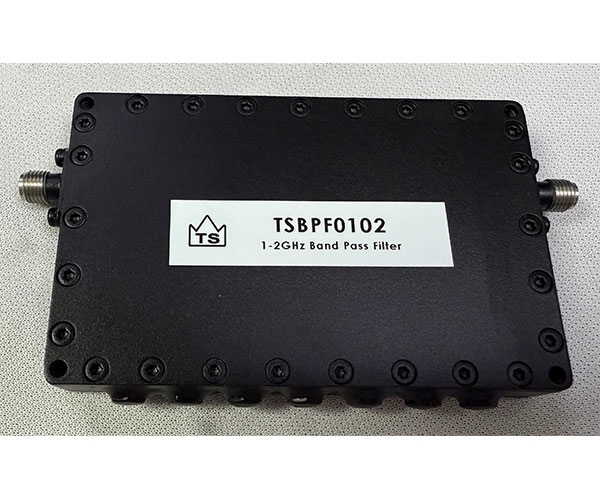

TSBPF0102 Band Pass Filter
TSBPF0102 Band Pass Filter  1.0 ~ 2.0 GHz 帶通濾波器
規格
TSBPF0102 Band Pass Filter 帶通濾波器
Pass Band Frequency1.0～2.0 GHz
ConnectorSMA-Female
Impedance 50ohm
Insertion Loss≤1.0dB
Pass Band Ripple≤0.7dB
Return Loss≥20dB
Rejection

≥70dB @ DC ~ 0.84 GHz
≥50dB @ 2.16 GHz ~ 3.0 GHz

Power Handling5W Max
Temperature Range-30℃ ~ +70℃
