商品編號：TSBPF0910

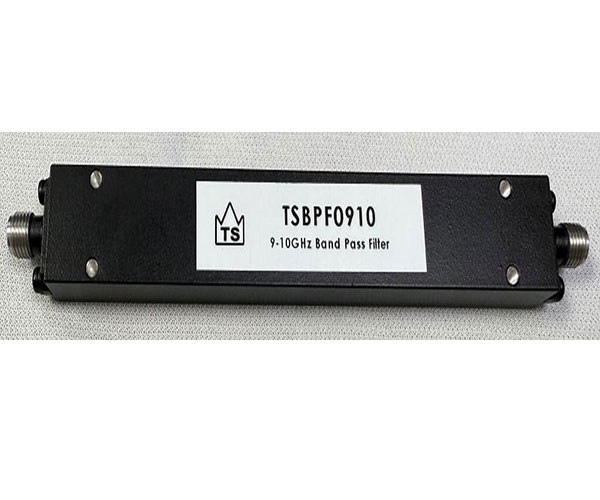

TSBPF0910 Band Pass Filter
TSBPF0910 Band Pass Filter  9.0 ~ 10.0 GHz 帶通濾波器
規格
TSBPF0910 Band Pass Filter 帶通濾波器
Pass Band Frequency9.0 ~ 10.0 GHz
ConnectorSMA-Female
Impedance 50ohm
Insertion Loss≤1.0dB
Pass Band Ripple≤0.5dB
Return Loss≥23dB
Rejection

≥80dB @ DC ~ 8500MHz
≥80dB @ 10500 ~ 25000MHz

Power Handling10W Max
Temperature Range-30℃ ~ +70℃
