商品編號：TSBPF1112

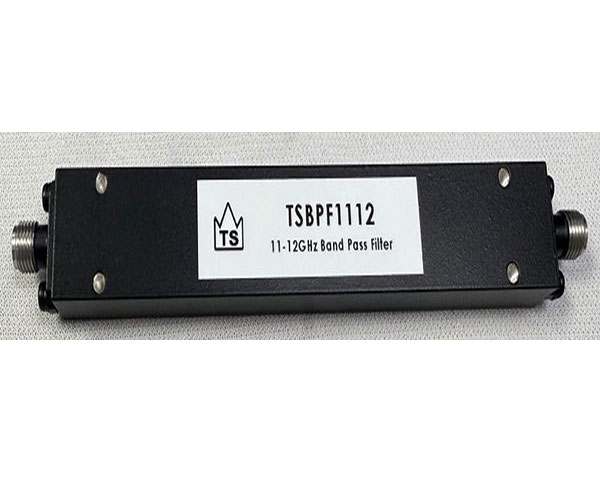

TSBPF1112 Band Pass Filter
TSBPF1112 Band Pass Filter  11.0 ~ 12.0 GHz 帶通濾波器
規格
TSBPF1112 Band Pass Filter 帶通濾波器
Pass Band Frequency11～12 GHz
ConnectorSMA-Female
Impedance 50ohm
Insertion Loss≤1.5dB
Pass Band Ripple ≤0.7dB
Return Loss ≥23dB

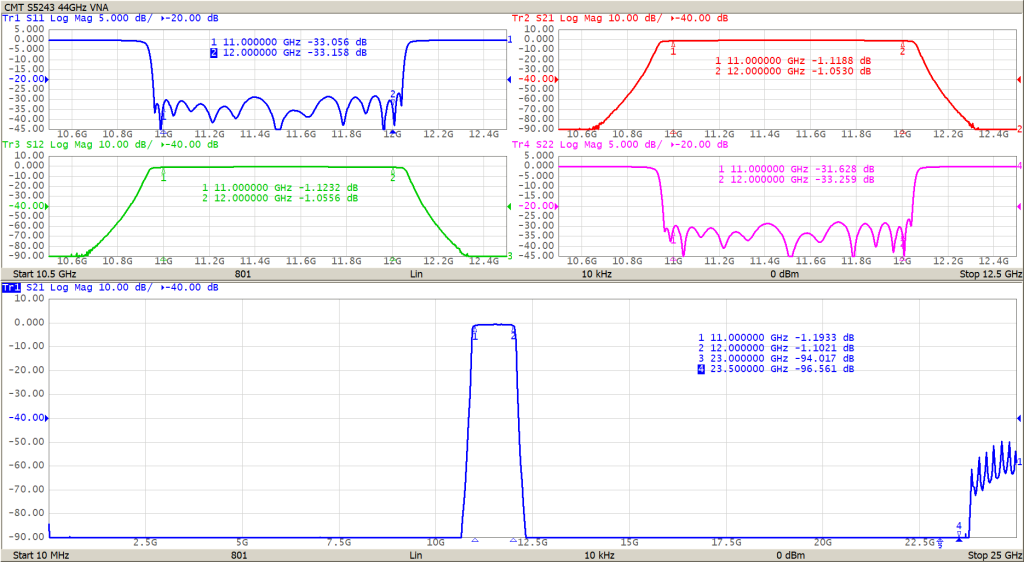

Rejection

≥80dB @ DC ~ 10600MHz
≥30dB @ 10600 ~ 10800MHz
≥30dB @ 12200 ~ 12400MHz
≥80dB @ 12400 ~ 23000MHz

Power Handling10W Max
Temperature Range-30℃ ~ +70℃
